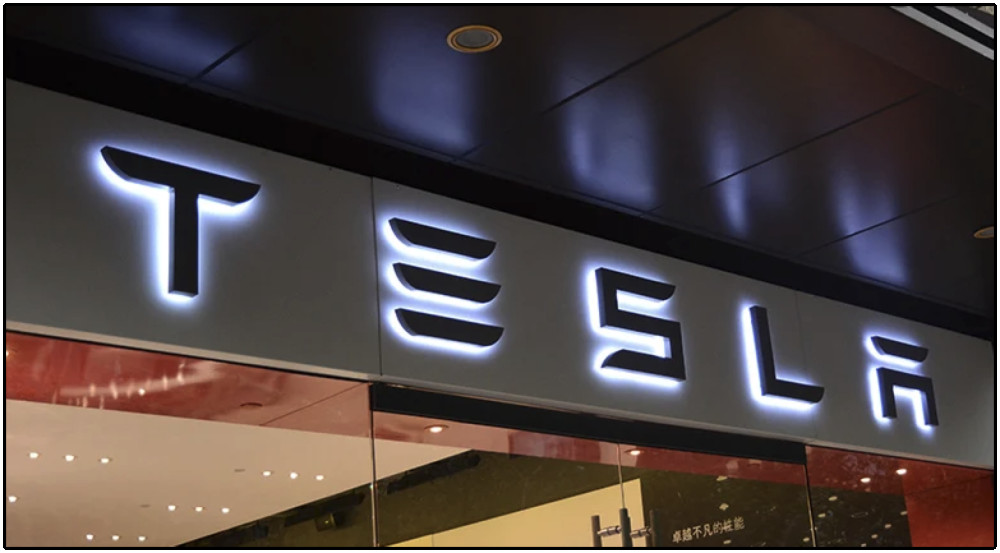

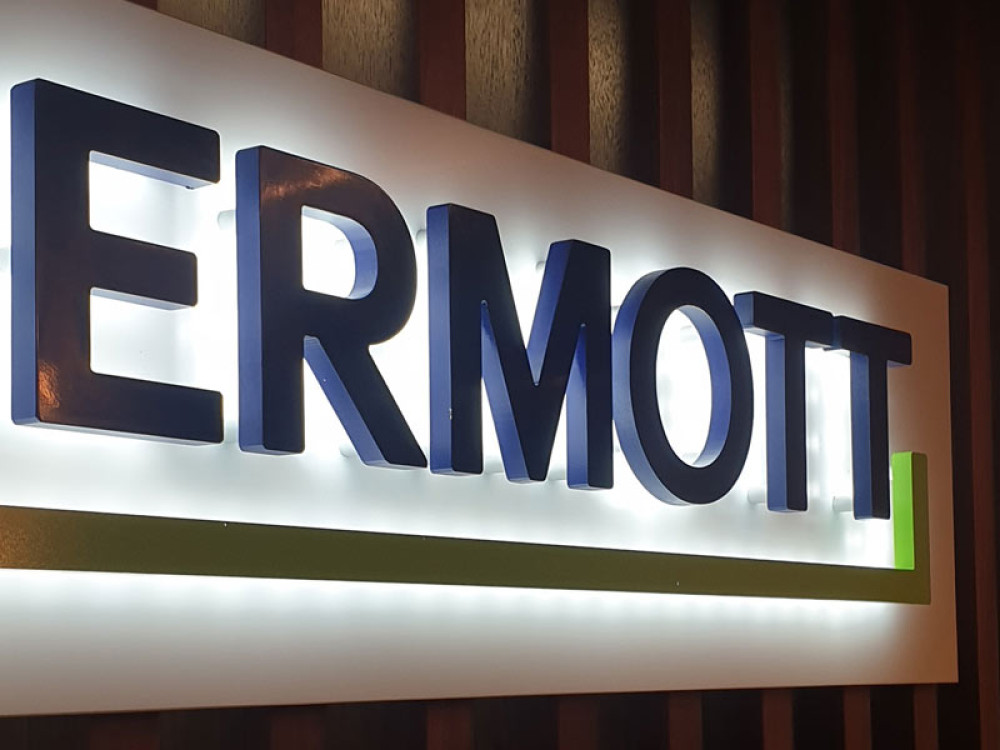

This channel letter has a solid stainless steel face and return available in 35+ colors. Similar to our standard front/back lit, this stainless steel letter has a clear lexan back so the LED shines through and hits the wall to achieve a halo effect.
- Ready-to-install: Wiring diagrams and installation pattern are included (Installation accessories excluded)
- Certified: UL Listed with Sign Section Labels for Outdoor Installation
- 5 Year Warranty
Components
Face
Faces are the front stainless steel surface of Reverse Lit letters
Specification
0.8mm/1mm stainless steel
Return
Returns are the sides bordering the Reverse Lit letter.
Specification
2″ or 3″ 0.8mm/1mm stainless steel Returns
Back
Backs are the back board of the Reverse Lit letter.
Specification
1/8” Clear Lexan
LED Lights
Specification
Mynice High Efficiency, 160° Beam, IP67, 10000K – 12000K, 0.7W & 1.2W LED Module (5 Year Warranty)
Power Transformer
Specification
Fang Hua HMA-60NU-RX 12V/ 5A 60W, Class 2, Constant Voltage, Constant Current, IP67, Power Supplies (5 Year Warranty)
*For dry location only.
Non-brand Transformer Boxes (3.5”x5.8”x13.5” for 1 transformer and 3.5”x10”x13.5“ for 2 transformers)
*For dry location only.
Non-brand Transformer Boxes (3.5”x5.8”x13.5” for 1 transformer and 3.5”x10”x13.5“ for 2 transformers)
Installation Guide
Raceway
Specification
Size:
5.5″ height and 3.5″ depth
Customizable length from 10″ to 46″
For wider applications, multiple segments are used to achieve the desired lengthAccessories:
5.5″ height and 3.5″ depth
Customizable length from 10″ to 46″
For wider applications, multiple segments are used to achieve the desired lengthAccessories:
- Raceway base (each segment)
- Raceway cover (each segment)
- End caps x2 (each raceway)
- Connect plates x2 (each segment)
- Mounting brackets x4 (each segment)
- Self-tapping screws x20 (each segment)
Please note that while there are wiring and mounting holes on the channel, we will NOT drill any holes on the raceway and you will have to drill the holes on the raceway yourself.
Raceway Installation Guide:
- List out parts
- Assemble Raceway
- Put Hanger on
