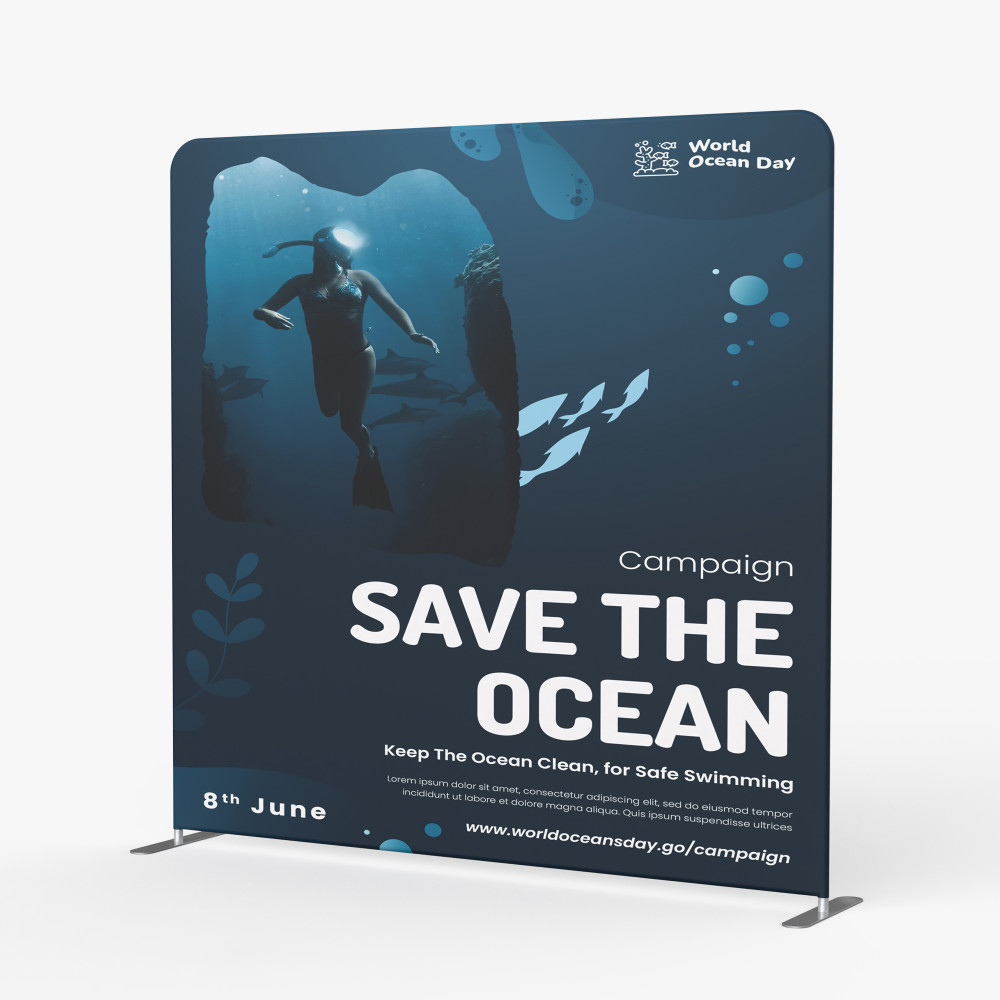

Our tension displays consist of a lightweight but durable aluminum hardware and a fabric dye sublimated print. The hardware is inserted inside the print, much like a pillow into a pillowcase. The fabric print is stretched tight across the frame and zipped close.
Spec
Material:
- 8.8 oz. Tension Fabric
Hardware:

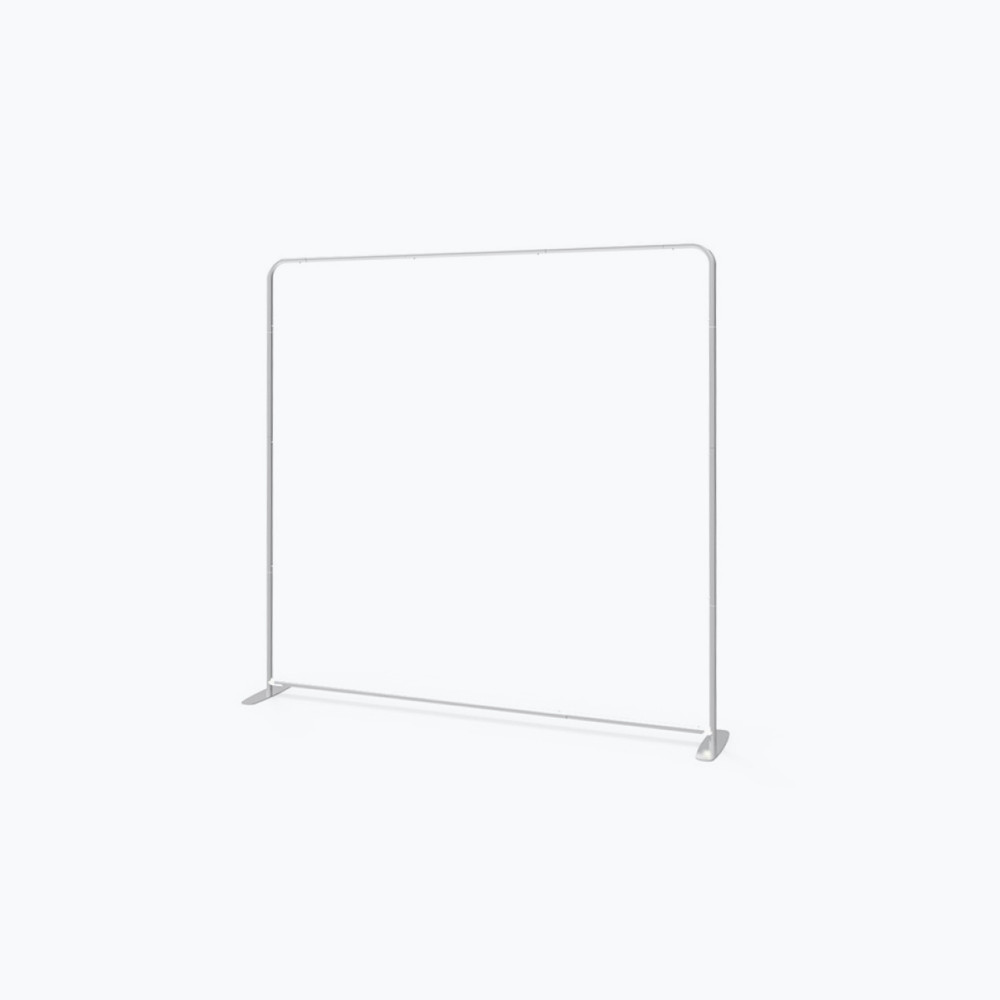

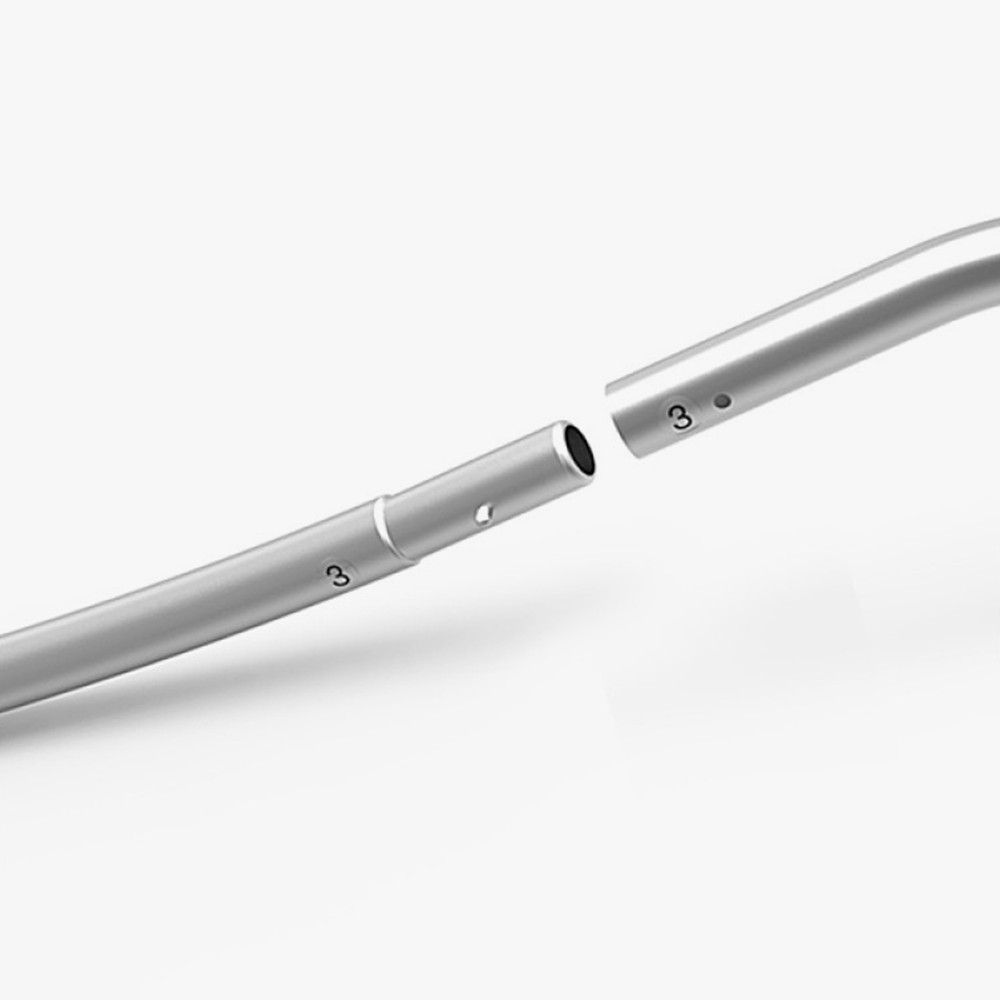

- Aluminum – Interlocking tube

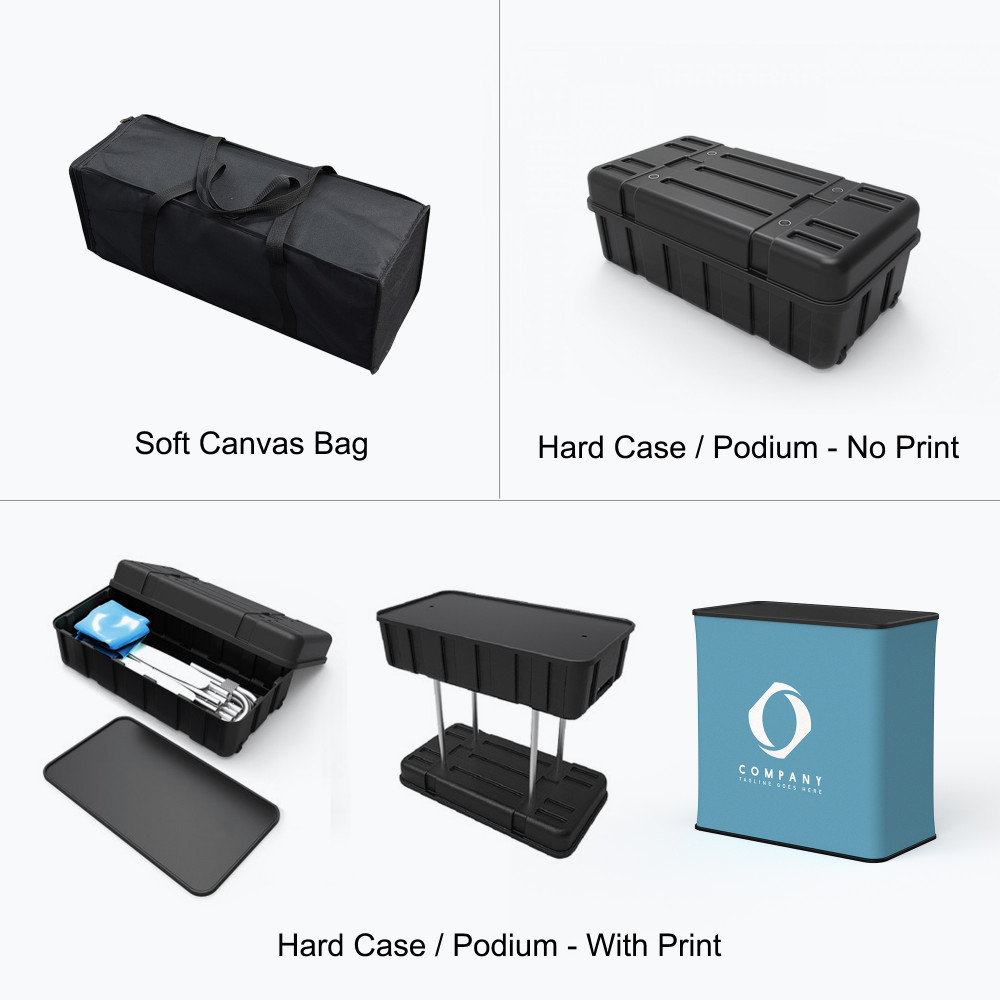

- Soft canvas bag (complimentary)
- Hard Case – Durable Plastic (optional)
Size and Weight :
| Size and Weight | 8ft Straight Shape | 10ft Straight Shape | 20ft Straight Shape |
|---|---|---|---|
| Display Size | 89.5”W x 89”H | 112”W x 89”H | 236.5”W x 89.5”H |
| Graphic Size | 90”W x 89.5”H | 115”W x 89.5”H | 236”W x 89.5”H |
| Weight (w/ soft canvas bag) | 30 lbs | 34 lbs | 41 lbs |
| Weight (w/ podium & led lights) | 52 lbs | 53 lbs | 72 lbs |
| Package Size (soft canvas bag) | 32”W x 11”H x 11”D | 32”W x 11”H x 11”D | 32”L x 12”W x 16”H |
| Package Size (hard case) | 40”W x 21”H x 17”D | 40″W x 21″H x 17″D | 40″W x 21″H x 17″D |
| Podium Size | 37″W x 37″H x 20″D | 37″W x 37″H x 20″D | 37″W x 37″H x 20″D |
File Setup
- Accepted File Formats: JPEG or PDF (single page only)
- Color Space: CMYK
- Resolution: For 8′ and 10′ displays 150 ppi recommended for raster images, for 20′ display 120 ppi.
- Max File Upload Size: 300MB
- Submit artwork built to ordered size – Scaled artwork is automatically detected and fit to order
- Do not include crop marks or bleeds

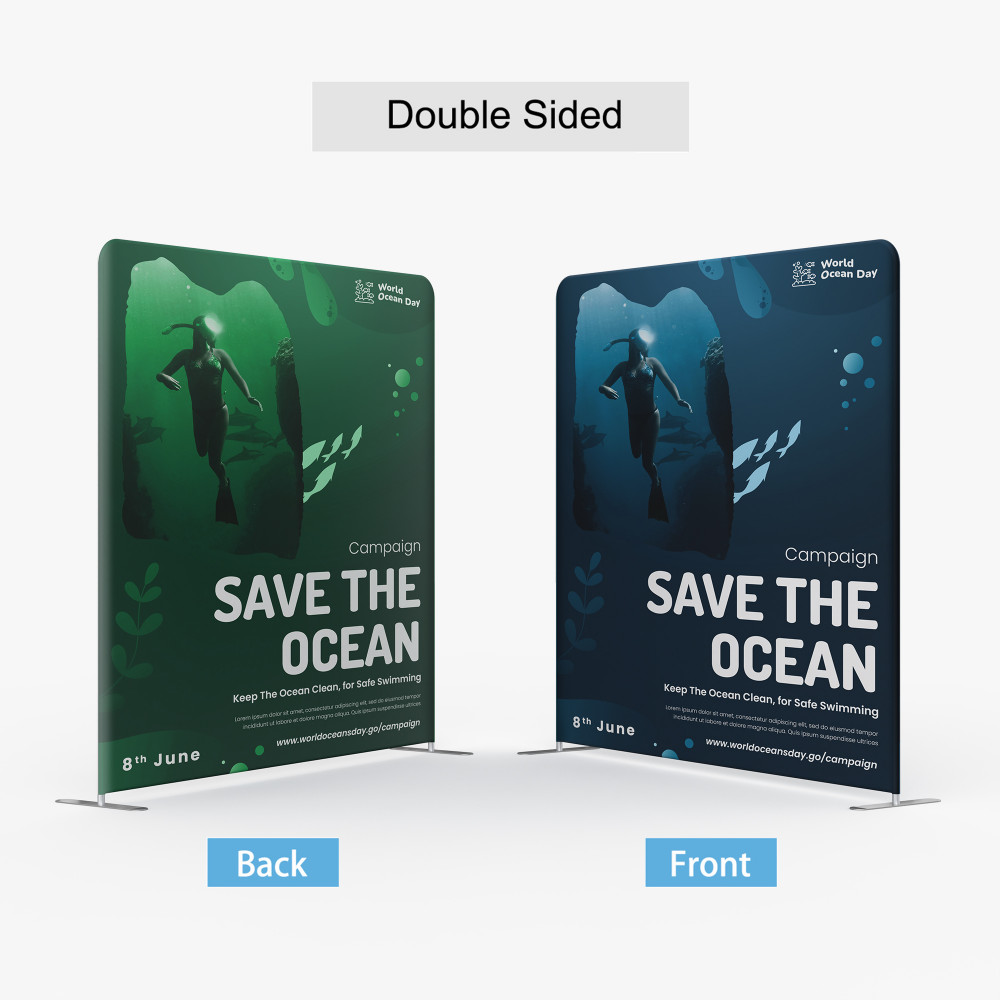

- Double sided products will be uploaded as two spearate files unless otherwise specified in the artwork template
Additional Tips
- Do not submit with Pantones/Spot Colors – Convert to CMYK
- Convert live fonts to outlines
- Use provided design templates when available
